High Precision Wood Cutting Horizontal Band Resaw Horizontal Band Saw Machine

Brand Name : SH

Model Number : SHJM350, SHJM650, SHJM800

Certification : ISO9001,CE

Place of Origin : Shandong Province, China

MOQ : 1 SET

Price : US $7,500-13,950 / Set

Payment Terms : T/T, Western Union

Supply Ability : 1000sets/year

Delivery Time : within 15 days

Packaging Details : Iron frame packing or container loading

Name : Precision Resaw Bandsaw

Condition : New

Function : Lumber/board precision slicing

Main motor power : 15kw, 18.5kw, 22kw, 30kw

Feeding motor : 1.5KW

Saw wheel diameter : 700mm

Max. sawing width : 1000mm

Max. processing height : 110mm

Feeding speed : Inverter, speed adjustable

Warranty : 1 Year

After-sales service provided : Online support,Video technical support,commissioning and training

Contact Now

Precision Resaw Bandsaw

Unlock Maximum Yield and Precision with an Industrial Precision Resaw Bandsaw

Beyond basic cutting, a precision resaw is an investment in productivity. Its core benefit lies in transforming challenging tasks—like salvaging expensive slabs or producing delicate veneers—into streamlined, repeatable processes. This is the definitive solution for professionals who require dependable performance day in and day out.

Key Benefits and Features at a Glance

High-Output Efficiency with Power Feeding
- Benefit: Dramatically increase production rates and achieve a perfect surface finish by automating the feed process. A power feeder provides a consistent, steady feed rate, which is crucial for both operator safety and optimal precision resawing.
- Features Behind the Benefit: Driven by a high-torque motor and often paired with a carbide-tipped blade, the saw maintains consistent speed and power through the thickest materials.
Maximize Material Value and Versatility
- Benefit: Recover the highest possible value from expensive lumber by efficiently resawing slabs and cants into thinner, usable boards. The wide resaw capacity opens up opportunities for diverse projects.
- Typical Applications: Ideal for producing lumber, custom veneers, wood siding, and salvaging valuable material from live-edge slabs.

Technical Specifications:

Model	SHJM-400	SHJM-650	SHJM-800	SHJM-1000
Saw wheel diameter	600MM	700MM	700MM	700MM
Max. processing width	400MM	650MM	800MM	1000MM
Max. processing height	110MM	110MM	110MM	110MM
Sawn min.thickness	2MM	2MM	2MM	2MM
Feeding speed	0.1-30m/min	0.1-30m/min	0.1-30m/min	0.1-30m/min
Main motor power	15KW	18.5KW	22KW	30KW
Feeding motor power	0.75KW	0.75KW	1.5KW	1.5KW
Sawn sizes setting	CNC digital	CNC digital	CNC digital	CNC digital
Machine weight	1850kgs	2550kgs	2750kgs	3150kgs

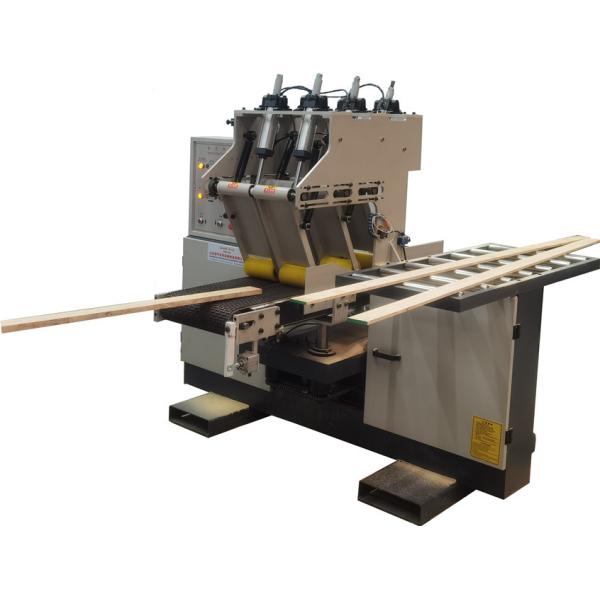

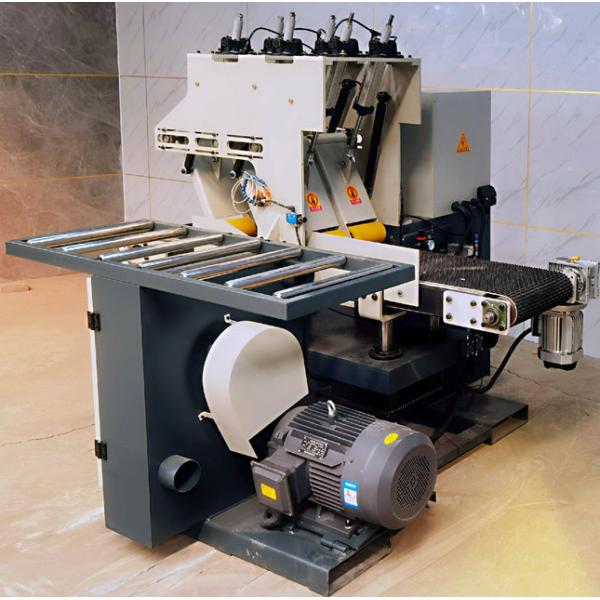

Detailed Images

High Precision Wood Cutting Horizontal Band Resaw Horizontal Band Saw Machine

Related Saw Machines

Precision Slice Horizontal Band Sawmill

Horizontal Resaw Band Saw Mills
Model	SH350	SH650	SH800
Saw Wheel Diameter	710 mm	710 mm	710 mm
Maximum Cutting Width	350 mm	650 mm	800 mm
Maximum working Wood Height	200 mm	220 mm	220 mm
Max Sawing Height	100 mm	110 mm	110 mm
Min Sawing Thickness	2 mm	2mm	2mm
Feeding speed	Variable Frequency Adjusted Speed
Main Electric Motor Power	15 KW	18.5 KW	18.5KW
Up/down motor	0.37kw	0.37kw	0.37kw
Feeding motor	1.1kw	1.1kw	1.5kw
Machine Weight	1000 KG	1200 KG	1400 KG

High Precision Wood Cutting Horizontal Band Resaw Horizontal Band Saw Machine

Built to Last, Backed by Support

We stand behind the durability of our precision resaw bandsaws. Each machine is backed by a comprehensive warranty and supported by a dedicated service team, ensuring you have the parts and expertise you need to keep your production running smoothly.

Ready to transform your woodworking productivity? Contact our experts today to discuss your specific needs and find the perfect precision resaw bandsaw for your shop.
