Semi Automatic Euro Wooden Pallet Wood Nailing Making Machine Production Line Sale

Brand Name : SH

Model Number : AEPN-1400-1

Certification : ISO9001

Place of Origin : Shandong Province, China

MOQ : 1 SET Pallet nailing machine

Price : US $14,200 - 21,500 / Set

Payment Terms : T/T, Western Union

Supply Ability : 1000sets/year of Pallet nailing machine

Delivery Time : within 20 days

Packaging Details : container loading of Pallet nailing machine

Name : Wood Pallet Nailing Machine

pallet width : 700-1600 mm

pallet length : 700-1300mm

capacity : 400pallets/8hours

Operating pressure : 0.8MPA

Number of Coil Nail Guns : 2P (CN70、CN55)

Qty of beams : 3P or as customer needs

Working mode : PLC touching screen

Nailing mode : Manual

Guarantee : 1 year

Contact Now

Semi-Automatic Wood Pallet Nailing Machine/Euro Block Pallet Production Line

features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.

Instruction:

  • Easy to use One operator can build 400 pallets within 8 hours
  • Universal Adjustable worktop allows production of:
  • Pallets on 2, 3, 4, or 5 beams
  • Efficient Quickly switch to any size pallet
  • Pneumatic clamp Easily centers the blocks
  • Pneumatic lift Raises pallet to minimize operator lifting
  • Overhead roller track Nail guns can move freely during work
  • Bottom template Template to build pallet legs
  • Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
  • Unique Diagonal table adjustment reduces work by 50%

Technical specifications:

AEPN-1400-1 Semi-automatic European pallet nailing machine
Wood pallet length 700-1300mm
Wood pallet width 700-1600mm
Nailing mode manual
Working mode PLC touching screen
Pallet returning mode Electrical
Air pressure 0.8MPA
Number of beams 3p (or customized)
Number of nail guns 2P (CN70,CN55) American Stanley staple gun
Main motor power 5kw
Wood Pallet Turning Machine
Turning speed 4-8s/time
Wood Pallet Automatic Palletizer
Palletizing capacity 20pcs pallets

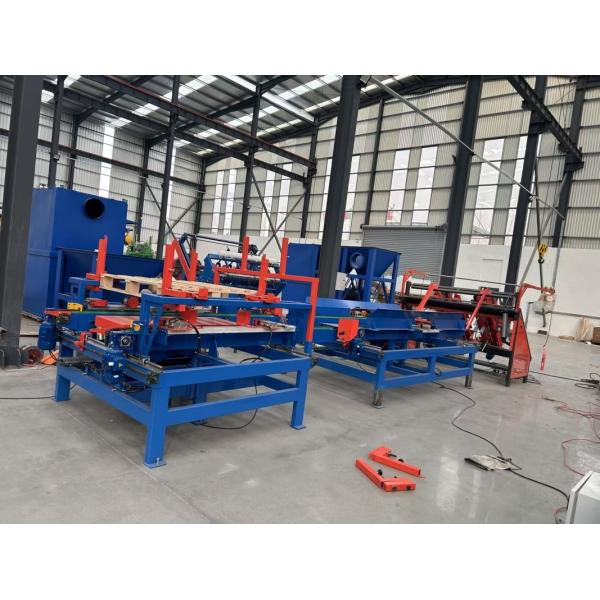

Detailed Images

Semi Automatic Euro Wooden Pallet Wood Nailing Making Machine Production Line SaleSemi Automatic Euro Wooden Pallet Wood Nailing Making Machine Production Line Sale

Semi Automatic Euro Wooden Pallet Wood Nailing Making Machine Production Line Sale

Related Products

European Automatic Pallet Production Line

Model AEPN-1300
Wood pallet length 700-1300mm
wood pallet width 800-1300mm
Production efficiency 50-80 pallets/hour

Device list :

  1. Automatic Euro pallet block nailing machine
  2. European pallet nailing machine
  3. wood pallet rotary machine
  4. wood pallet branding machine
  5. wood pallet corner cutting machine
  6. wood pallet turning machine
  7. wood pallet palletizer
  8. wood pallet conveyor

Semi Automatic Euro Wooden Pallet Wood Nailing Making Machine Production Line Sale

Semi Automatic Euro Wooden Pallet Wood Nailing Making Machine Production Line SaleSemi Automatic Euro Wooden Pallet Wood Nailing Making Machine Production Line Sale
