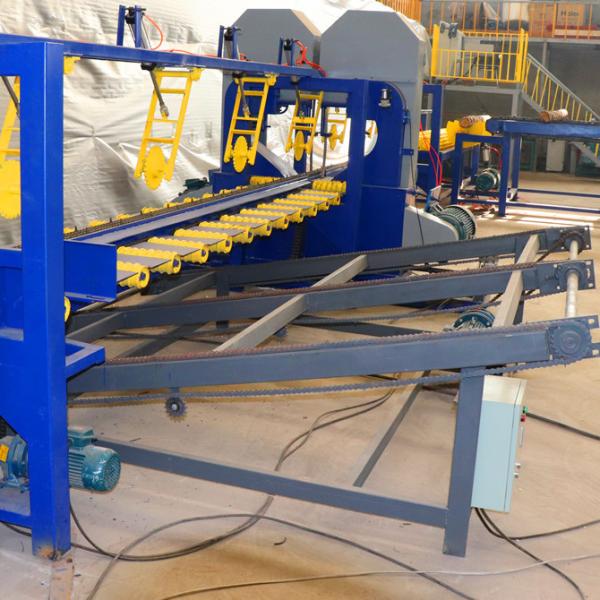

Twin Vertical Bandsaw Mill Wood Production Line 150-200CBM Per Hour

Brand Name : SH

Model Number : SLS350, SLSP400, SLS500

Certification : ISO9001

Place of Origin : Shandong Province, China

MOQ : 1 SET

Price : USD3,000-USD100,000/SET

Payment Terms : T/T or L/C at sight, Western Union

Supply Ability : 100 sets/year of wood cutting vertical sawmill production line

Delivery Time : within 25 days

Packaging Details : container loading

Name : Twin Vertical Band Sawmill Production Line

Application : Log cutting to different sizes

Max. sawing log diameter : 500mm

Max. sawing log length : 3m, 4.5m, etc as customer needs

Capacity : 150-200CBM/hour

Operation : Automatic

Guarantee : 1 year

After-sales service : Video technical support, spare parts at stock

Keywords : wood cutting vertical band saw

Contact Now

Wood saw machine Automatic production line Twin vertical sawmill band saw

Twin Vertical Bandsaw Mill Wood Production Line 150-200CBM Per Hour

Full Automatic Vertical Log Cutting Band Saw Production Line

sawing log max. diameter : 500mm
sawing log max. length : 3meters to 6meters
Operation: automatic
capacity: 150m3/day
Design instroduction

NO.	Name	QTY	Details
1	Wood Loading Machine	1	Loading logs to the carriage of two-set vertical band saw
2	Twin Vertical Band Sawmill	1	Cutting two sides of logs
3	Rolling Board Conveyor	1	Transfering wood
4	Twin Vertical Band Sawmill	1	Cutting other two sides of logs
5	Board Multi Rip Saw	1	Cutting board to small size planks
6	Twin Blade Board Edger	1	Cutting both sides of the board
7	Rolling Board Conveyor	1	Output planks from twin vertical band sawmill
8	Rolling Board Conveyor	1	Output planks from twin vertical band sawmill
9	2 head, 3 head, 4 head, 5 head, 6 head Horizontal Band Sawmill	1	Cutting wood to many pieces once
10	Rolling Board Conveyor	1	Output the boards from multi head horizontal band saw

Technical Data:

Central Console
Overall size	3000*1500mm
Display function	LCD Monitor
Operation	Distant control
Wood loading rack
Length of loading rack	4000mm
Total width	2500mm
Transmission method	Inverter
Motor	3KW
loading method	Pneumatic
Feeding type	Chain feeding
Wood automatic tumbling guide belt
Max. length of tumbling wood	3m
Transmission method	Inverter
Total motor power	6KW
Control	Distant control
SLS350 Twin Bandsaw for logs No.1
Max. sawing log diameter	350mm
Min.sawing log diametr	150mm
Log length	800-3000mm
Saw wheel diameter	700mm
Sawing speed	9-25m/min
Main motor power	18.5KW *2
Sizing operation	CNC Touching screen
Automatic roll adjustment centering roller frame
Frame length	6000mm
Width	1000mm
Motor	5.5kw
Log centering operation	Pneumatic
SLSP400 Twin Bandsaw for logs No.2
Max. sawing log diameter	400mm
Min. sawing log diameter	150mm
Log length	800-3000mm
Saw wheel diameter	700mm
Sawing speed	frequency
Motor power	18.5KW *2
Sizing operation	CNC touching screen
Slab slope conveyor
Conveyor length	3000mm
Width	2500mm
Motor	2.2KW
DT300-5 Multi Heads Band Saw-5heads
Max. sawing width	300mm
Max. sawing thickness	300mm
Main motor	15kw*5
BPJ300 Slabs Cutting Saw
Max. sawing width	300mm
Max. sawing thickness	200mm
Motor power	7.5KW*2
CB600 Wood Edger
Max. sawing width	600mm
Max. sawing thickness	80mm
Blades No.	1-5pcs
Motor power	22kw

Photos

Twin Vertical Bandsaw Mill Wood Production Line 150-200CBM Per Hour

Related Products

Multi Heads Band Resaw

Technical data

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

Detailed Image -6heads reaw equipment
Twin Vertical Bandsaw Mill Wood Production Line 150-200CBM Per Hour

Twin Vertical Bandsaw Mill Wood Production Line 150-200CBM Per Hour

Slabs Cutting Saw

Specifications:

Model Specifications	BPJ200	BPJ250	BPJ300
Cutting width (mm)	200	250	300
Motor power (KW)	7.5kw x 2	7.5kw x 2	7.5kw x 2
Feeding	Frequency variable auto feeding
Circular blade diameter (mm)	300	355	405
Weight (kg)	200	220	250

Twin Vertical Bandsaw Mill Wood Production Line 150-200CBM Per Hour

Multi Blades Rip Saw

Technical data :

Model	ZHW800-70	ZHW800-80	ZHW800-100
Sawing wood height	10-70mm	10-80mm	20-100mm
Sawing wood width	800mm	800mm	800mm
Carbide blade diameter	280mm	305mm	355mm
Main motor	22KW	30KW	37KW
Blade quantity	1P-10P	1P-10P	1P-10P
Rotation speed	3500/min	3500/min	3500/min

Twin Vertical Bandsaw Mill Wood Production Line 150-200CBM Per Hour

Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type

Model	SH100-400	SH120-400	SH160-400	SH200-400	SH250-400	SH270-400	SH290-400
Sawing width	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm
Sawing thickness	40-100mm	50-120mm	70-160mm	90-200mm	110-250mm	130-270mm	150-290mm
Motor	30kw*2	37kw*2	37/45kw	37/45kw	45kw*2	45/55kw	55KW*2
Saw Blade Diameter	180MM	230mm	255mm	230mm	280mm	280mm	380mm
Spindle Diameter	70mm	70mm	70mm	80mm	80mm	80mm	100mm
Weight	2330kg	2450kg	2480kg	2550kg	2580kg	2620kg	2700kg

Twin Vertical Bandsaw Mill Wood Production Line 150-200CBM Per Hour

Pallet Making Machine /Wood Pallet Nailing Machine

Twin Vertical Bandsaw Mill Wood Production Line 150-200CBM Per Hour
